Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
| مكان المنشأ | Zhengzhou Henan |
|---|---|
| اسم العلامة التجارية | Henan Yongsheng |
| إصدار الشهادات | ISO, RoHS |
| رقم الموديل | رقائق الألومنيوم العازلة |
| الحد الأدنى لكمية | يتم قبول موك الصغيرة |
| الأسعار | FOB, CIF, CFR, CNF, etc. |
| تفاصيل التغليف | تعبئة مخصصة |
| وقت التسليم | 7-25 يومًا بعد تأكيد الطلب |
| شروط الدفع | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام |
اتصل بي للحصول على عينات مجانية وكوبونات
واتس اب:0086 18588475571
وي تشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| بناء | رقائق الألومنيوم + فقاعة + فيلم بي الأبيض | لون | فضي |
|---|---|---|---|
| عرض الحز | حسب الطلب | حجم لفة | 1.2*40 م لكل لفة |
| الانعكاس | 97 ٪ | سماكة | 4 مللي متر أو حسب الطلب |
| إبراز | Soundproof Aluminium Bubble Foil,Reflective Aluminium Bubble Foil,Soundproof Aluminum Foil Laminated Polyester Film,Reflective Aluminium Bubble Foil,Soundproof Aluminum Foil Laminated Polyester Film |
||
منتوج وصف

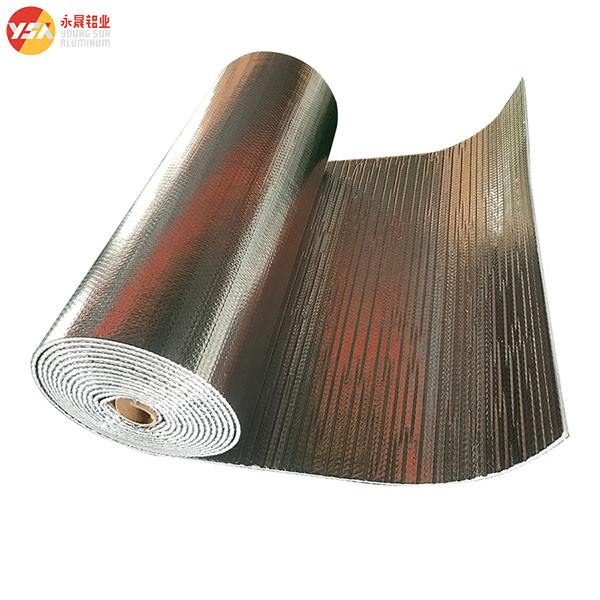

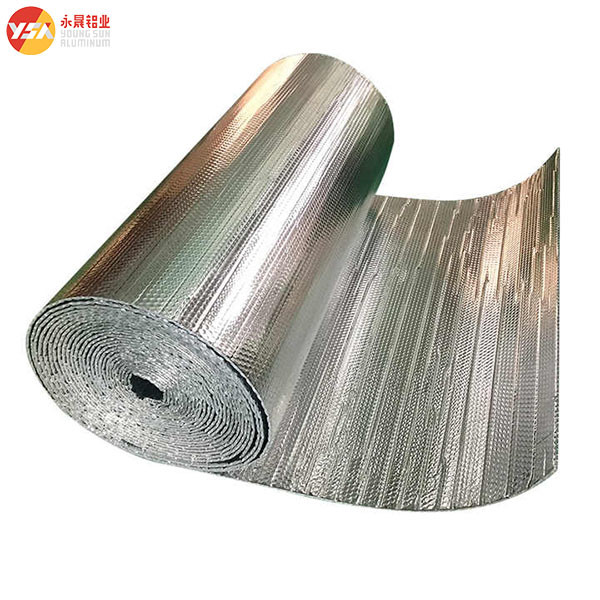

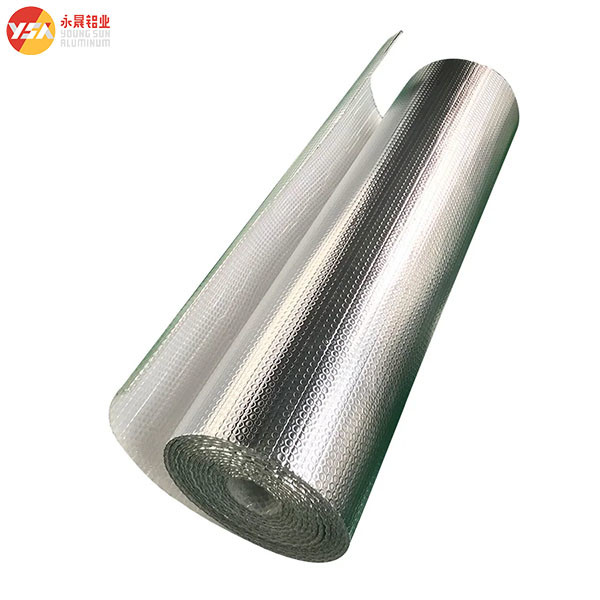

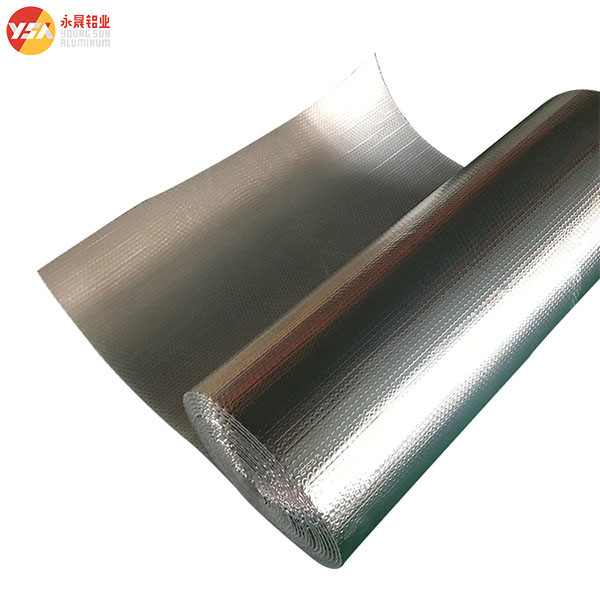

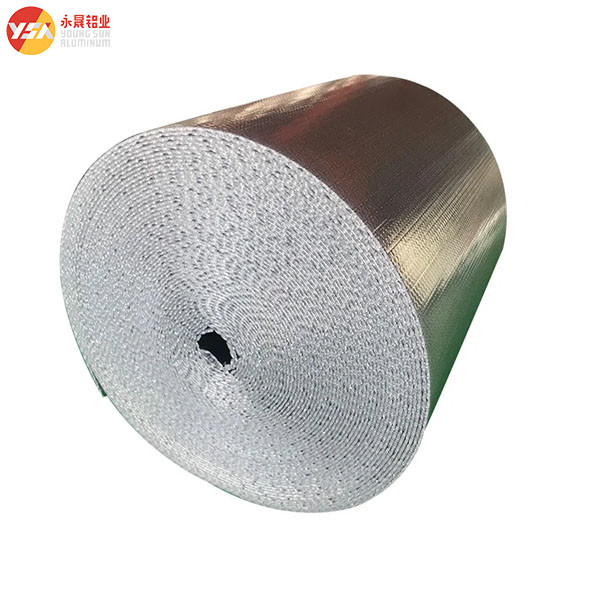

Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
Product Introduction
Air cell insulation is a special form of reflective aluminum bubble foil that has become the preferred choice for applications that require superior heat resistance and sound insulation.
Air cell insulation consists of multiple layers of air bubbles sandwiched between reflective aluminum foil. It works on the principle of radiant heat reflection and thermal resistance.
The reflective aluminum surface reflects radiant heat back to its source, while the trapped air bubbles act as an insulator, reducing the conduction of heat and sound through the material.
Air cell insulation consists of multiple layers of air bubbles sandwiched between reflective aluminum foil. It works on the principle of radiant heat reflection and thermal resistance.
The reflective aluminum surface reflects radiant heat back to its source, while the trapped air bubbles act as an insulator, reducing the conduction of heat and sound through the material.
| Temperature range | -76F ~+212F (ASTM C411) |
| R-value | 2.0~11.2 |
| Fire-proofing | Class A/Class 1 |
| Emissivity | 0.03-0.04 COEF |
| Thermal Conductivity | 0.032 -0.036W/m0 |
| Apparent Density | 54.8 kg/m3 |
| Reflectivity | 96-97% |
| Vapor Transmission | 0.012 g/m2kpa |
| Corrosion | Doesn’t generate |
| Tensile Strength(MD) | 13.43 Mpa |
| Tensile Strength(TD) | 14.58 Mpa |
1. The outer layer of reflective aluminum foil is engineered to reflect up to 97% of radiant heat, significantly enhancing the thermal performance of the material.
2. The inner air bubbles act as a thermal barrier, preventing heat from passing through the material. This layer helps minimize heat loss in the winter and gain in the summer.
3. The construction of Air Cell insulation makes it lightweight and easy to handle, which reduces installation time. It can be cut and shaped without affecting its insulating properties, making it ideal for areas with complex or irregular surfaces.
4. Air cell insulation is resistant to moisture, rot and mildew, making it suitable for a variety of environments, including areas of high humidity. It also has a long service life, maintaining its efficiency for long periods of time without noticeable degradation.
2. The inner air bubbles act as a thermal barrier, preventing heat from passing through the material. This layer helps minimize heat loss in the winter and gain in the summer.
3. The construction of Air Cell insulation makes it lightweight and easy to handle, which reduces installation time. It can be cut and shaped without affecting its insulating properties, making it ideal for areas with complex or irregular surfaces.
4. Air cell insulation is resistant to moisture, rot and mildew, making it suitable for a variety of environments, including areas of high humidity. It also has a long service life, maintaining its efficiency for long periods of time without noticeable degradation.
Product Parameter
| Main Material | Aluminum Foil, metal foil, PE Bubble, |
|
Material Structure |
MPET+Bubble+ +White Pe Film Aluminum Foil+Bubble+White Pe Film Aluminum Foil+Bubble+White Pe Film Colorful Coating+Aluminum Foil+Bubble + White Pe Film |
| Bubble | Pe bubble, diameter is 10mm, height can be 3/4/6/8mm, Diameter is 20mm, height will be 7mm |
| Normal Insulation Thickness | 4mm,6mm,7mm,8mm |
| Bubble color | regular is clear or white |
| Reflectivity | 97% |
| Normal Roll Size | 1.2m*30m/roll, 1.2*40m/roll, 1.5*20m/roll, also can be customized; max width is 1.5m |
| Packing | 1 roll/pe bag, pe bag can be printed customized |
Product Show
Product Features
