Black Glue Aluminum Polyester Laminating Duct PET+HDPE+VMPET Film
| مكان المنشأ | Zhengzhou Henan |
|---|---|
| اسم العلامة التجارية | Henan Yongsheng |
| إصدار الشهادات | ISO, RoHS |
| رقم الموديل | بيت + هدب + فمبيت |
| الأسعار | FOB, CIF, CFR, CNF, etc. |
| تفاصيل التغليف | التعبئة والتغليف حالة خشبية القياسية |
| وقت التسليم | 7-25 يومًا بعد تأكيد الطلب |
| شروط الدفع | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام |
اتصل بي للحصول على عينات مجانية وكوبونات
واتس اب:0086 18588475571
وي تشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| لون | أسود | مادة خام | بيت + هدب + فمبيت |
|---|---|---|---|
| بطاقة تعريف | 76mm | OD | ≤700 ملم |
| عرض الحز | 20-90 ملم | سمك PET | 0.01-0.016 ملم |
| سمك فمبيت | 0.012-0.016 ملم | سمك البولي إيثيلين عالي الكثافة | 0.018-0.02 ملم |
| إبراز | HDPE Aluminum Polyester Laminating Duct,VMPET Aluminum Polyester Laminating Duct,Black Glue Aluminum Polyester Laminating Duct,VMPET Aluminum Polyester Laminating Duct,Black Glue Aluminum Polyester Laminating Duct |
||
منتوج وصف
Black Glue Aluminum Polyester Laminating Duct PET+HDPE+VMPET Film
Product Description
Black Glue Aluminum Polyester Laminated Duct combines a variety of materials: polyethylene Polyethylene Terephthalate (PET), high-density Density Polyethylene (HDPE) and vacuum-metallized Metallized Polyester (VMPET). Black Glue refers to the adhesive used in the lamination process, which improves the performance and application range of the film. This product is mainly used in HVAC ducts, flexible packaging and insulation materials.
Main Features
1. High Barrier: PET, HDPE and VMPET ensure its moisture, oxygen and light resistance.
2. Durability: The laminated structure resists punctures, tears and various environmental factors.
3. Thermal insulation effectively maintains temperature control and is suitable for HVAC applications.
4. Easy to Use: Black Glue adhesive can be directly installed and bonded to a variety of surfaces.

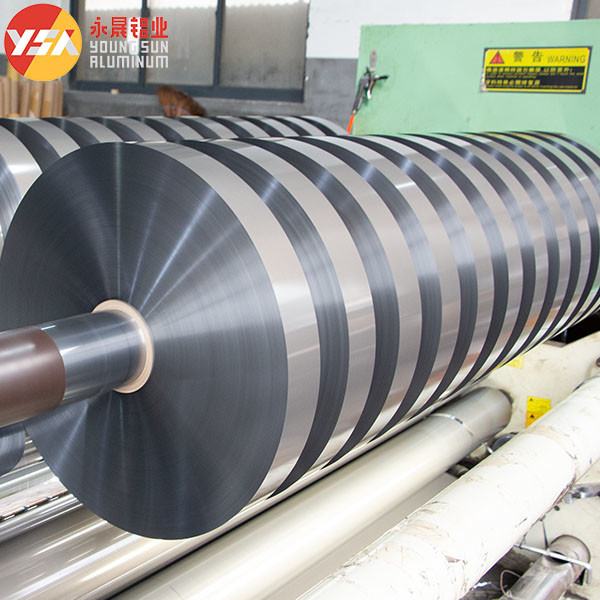

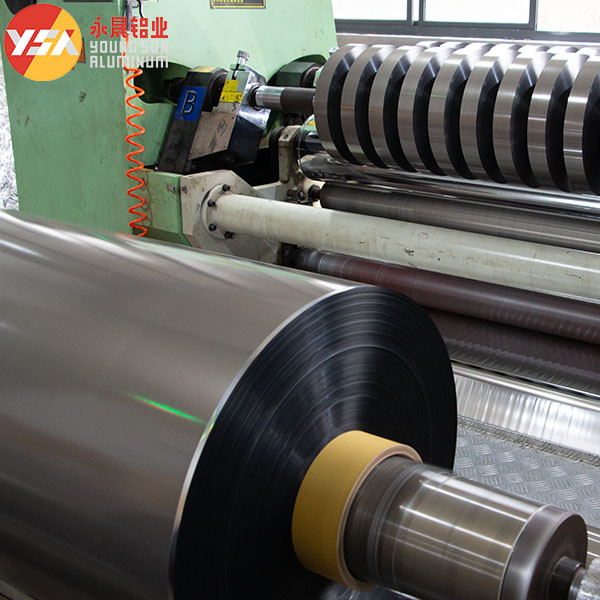

Our slitting tolerance is within 0.5 mm. Too large a tolerance will cause the aluminum foil to fall too large or too small during duct production, affecting the glue coating width.
The slitting width of the aluminum foil is affected by the duct diameter and the wire spacing. The diameter is different, and the aluminum foil width is also different. When using single-sided aluminum foil to make ducts, it is best to face the aluminum foil inward to increase fire resistance.
Product Specifications
|
Color:
Black |
Inner Diameter(mm):
38 / 53 / 76 / 152 |
|
Slitting Width(mm):
5~50 |
Outside Diameter(mm):
100~700 |
|
VMPET Thickness(mm):
0.012-0.016 |
PET Thickness(mm):
0.01~0.016 |
|
HDPE Thickness(g/m2):
0.018-0.02 |
|
|
Structure:
|
|

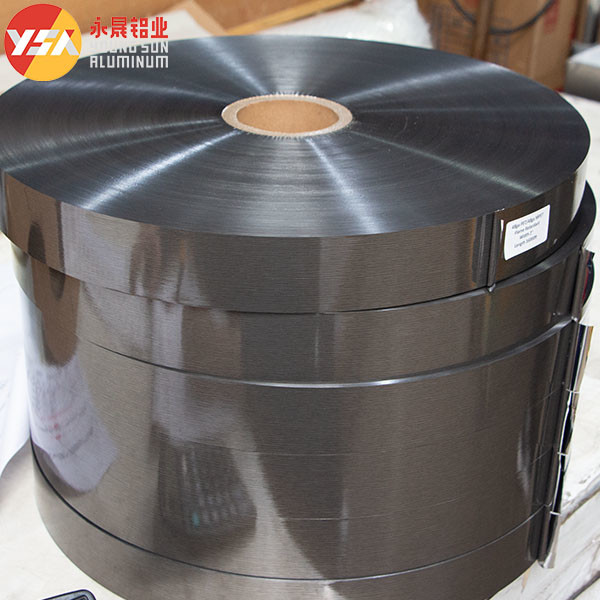

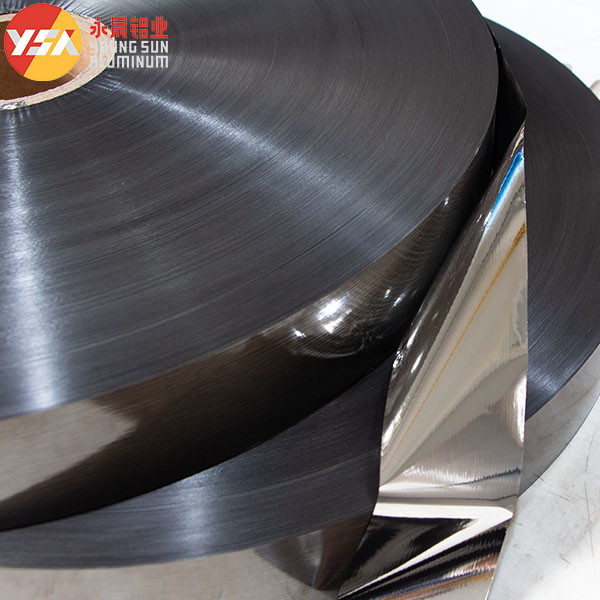

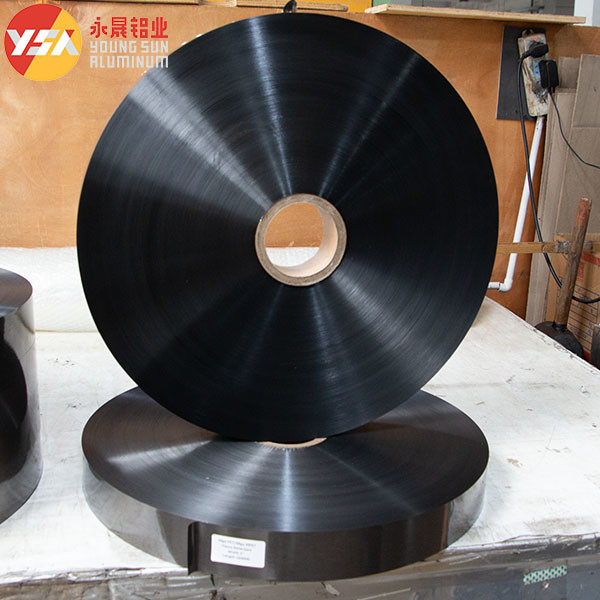

Product Display
Product Applications
