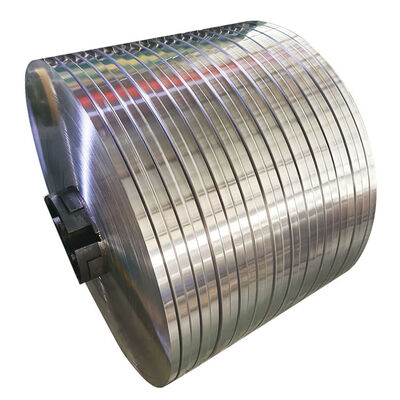

Industrial Aluminum Strip 1060 1100 3003 5052 6061 8011 For Transformer Winding

Product Description:

Aluminum strip for transformer winding, also known as aluminum transformer strip, is mainly used in dry and oil-immersed transformer manufacturing industries.
Aluminum strip for transformer winding ranges from 0.2mm to 3.5mm thickness and 10mm to 1600mm width.
The strip is wound on insulating materials such as paper, kraft paper, polyester film, or glass cloth. With high conductivity, good corrosion resistance, and a beautiful appearance, transformer aluminum strip is an indispensable material in the process of producing transformers.

• 1050 O aluminum strip in transformers is the most commonly used material in transformers. 1050 O aluminum strip has high electrical conductivity and thermal conductivity. In the actual application process of transformers, 1050 O aluminum strip is usually used as a supporting material to form transformer windings, which can reduce the loss of transformers and improve the performance of transformers.
• 1060 O transformer winding aluminum strip has a tensile strength of more than 135 MPa and an elongation of up to 15%, and the finished product has good electrical conductivity, thermal conductivity, and corrosion resistance. 1060 O aluminum alloy has high plasticity, corrosion resistance, electrical conductivity, and thermal conductivity. But their strength is lower than other alloys.
• 1070 O transformer winding aluminum strip can be used to make dry-type transformers, oil-immersed transformers, and reactor windings. 1070 O transformer winding aluminum strip has good heat dissipation, and long-term operation does not increase the coil temperature rise, thereby extending the service life of the coil.

Specifications:

1. Aluminum strip, also known as aluminum transformer strip foil, is mainly used for dry-type transformer windings.
2. Common alloys are 1060, 1050, 1070, 1350, tempered O temper.
3. The thickness is usually between 0.2mm-3.5mm.

Transformer aluminum strip can be customized in different widths and thicknesses according to customer requirements.

Display:
