1060 Aluminum Disc Circle For Lamp Cover / Cookware
| Herkunftsort | Zhengzhou Henan China |
|---|---|
| Markenname | Henan Yongsheng |
| Zertifizierung | SGS,ISO,etc. |
| Modellnummer | 1060 |
| Min Bestellmenge | 3 Tonnen |
| Verpackung Informationen | Holzpaket |
| Lieferzeit | 7-30 Arbeitstage |
| Zahlungsbedingungen | T/T, L/C, D/A, D/P, Western Union |
| Versorgungsmaterial-Fähigkeit | 5000 Tonnen pro Monat |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Bei Bedenken bieten wir rund um die Uhr Online-Hilfe an.
xProduktdetails
| Material | 1060 Aluminium | Dicke | 0,1-6,5 mm |
|---|---|---|---|
| Durchmesser | 80 bis 1200 mm | Temperament | O, h12, h14, h16, h18, H111, h22, h24, h26, usw. |
| Standard | Die in Absatz 1 genannte Regelung gilt nicht. | Anwendung | Kochgeschirr, Pfanne, Topf, Lampenhülle usw. |
| Hervorheben | Lamp Cover Aluminum Disc Circle,Cookware Aluminum Disc Circle,1060 Aluminum Disc Circle |
||
Produkt-Beschreibung
Video Description
1060 alu circle is widely used in cookware and lamp cover, etc.
Product Description:
The 1060 aluminum alloy (UNS A91060) is a commercially pure aluminum grade (99.6% Al) prized for its exceptional formability, corrosion resistance, and thermal conductivity. Our discs are cold-rolled and blanked to meet the stringent demands of lamp reflector covers and cookware bases.
| Property | 1060 Aluminum |
Comp etitor (3003 Alloy) |
| Aluminum Purity | 99.6%+ | 97.0% |
| Thermal Conductivity | 234 W/m·K | 193 W/m·K |
| Corrosion Resistance | Excellent (Salt Spray >1,000 hrs) | Good (Salt Spray 500 hrs) |
| Formability (Elongation) | 35–45% | 20–30% |
| Cost Efficiency | 15% lower than 3003 | Higher due to Mn content |
Features
-- High Reflectivity: Polished surface achieves ≥85% light reflectivity (CIE 15:2004 standard).
-- Non-Toxic & Food-Safe: FDA-compliant for direct food contact (21 CFR 175.300).
-- Lightweight Durability: Density of 2.7 g/cm³ with superior fatigue resistance.
MOQ: 3 tons
Lead Time: 15 days for stock items, 25 days for customized orders.
Payment Terms: T/T, LC, or Alibaba Trade Assurance.
Product Attribute:
| Parameter | Specifications | Testing Standard |
| Diameter | 80mm – 1,200mm (±0.1mm tolerance) | ISO 286-2 |
| Thickness | 0.1mm – 6.5mm (±0.02mm tolerance) | ASTM B209 |
| Tensile Strength | 60 – 95 MPa (H14 temper) | ISO 6892-1 |
| Surface Roughness | Ra ≤0.8μm (mirror finish) | ISO 4287 |
| Flatness Tolerance | ≤0.1mm per 300mm diameter | GB/T 3194 |
| Certifications | RoHS, REACH, FDA, ISO 9001 | — |
Product Pictures:

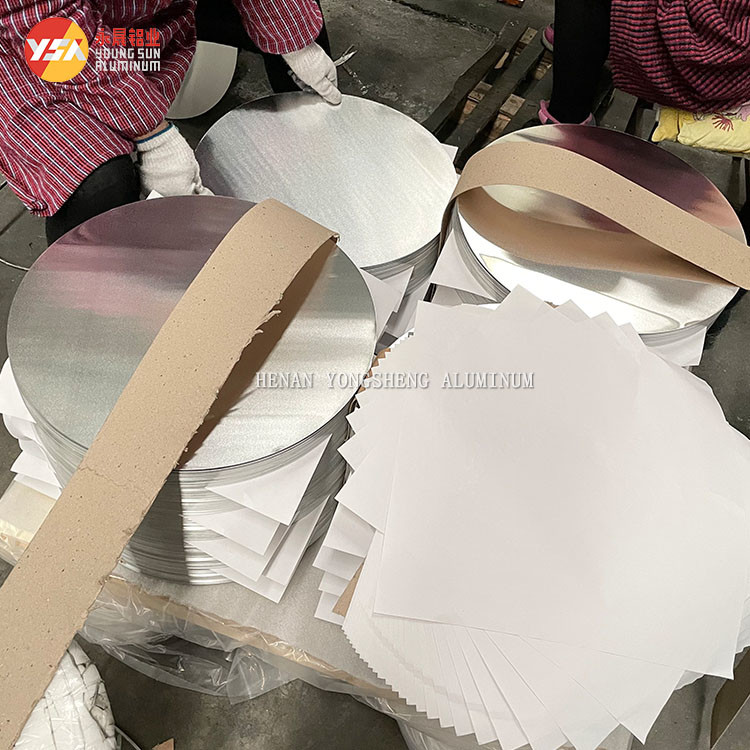

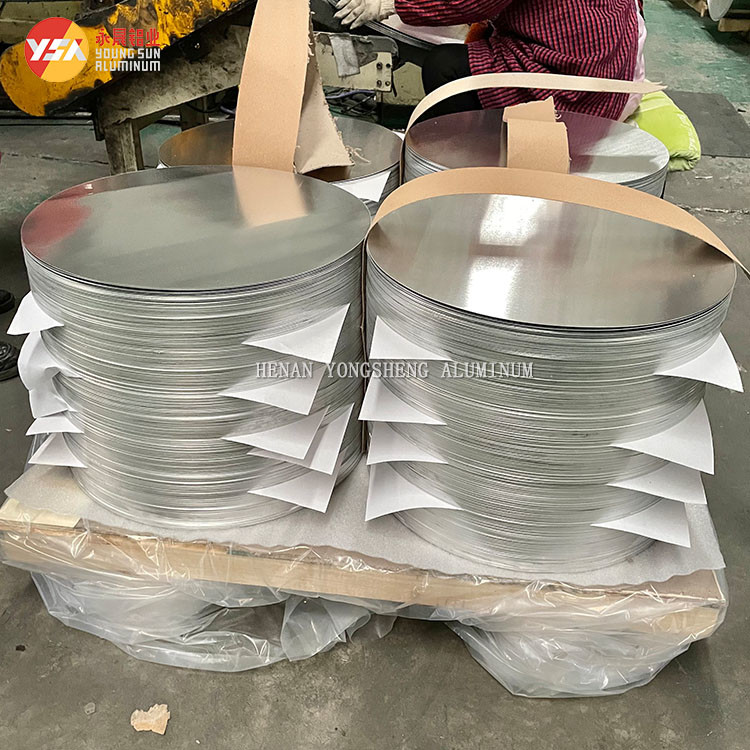

| 01 photos |
Our 1060 alloy contains ≤0.25% trace elements (Fe + Si), minimizing grain boundary corrosion. This ensures longevity in humid environments (e.g., kitchenware) and maintains reflectivity in LED lamp covers.

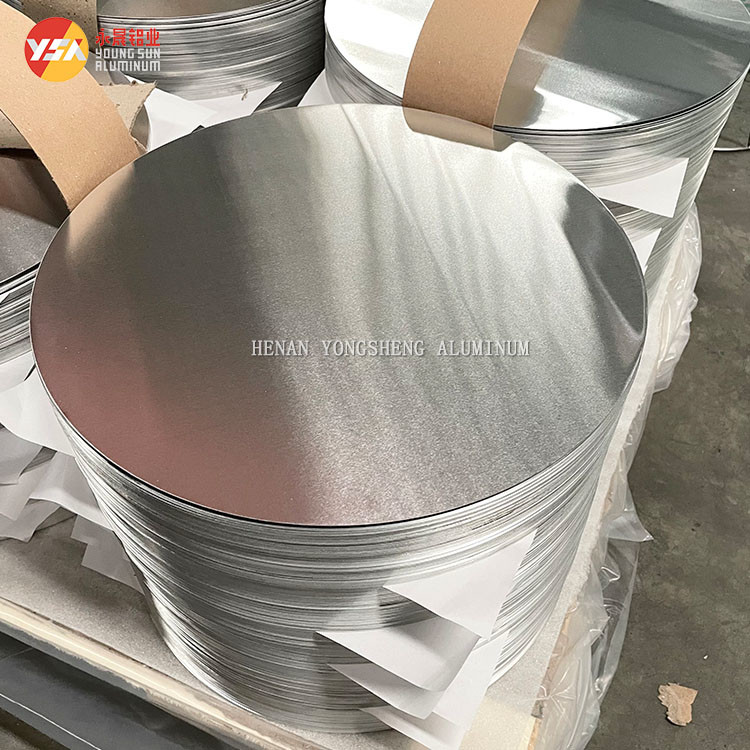

| 02 details |

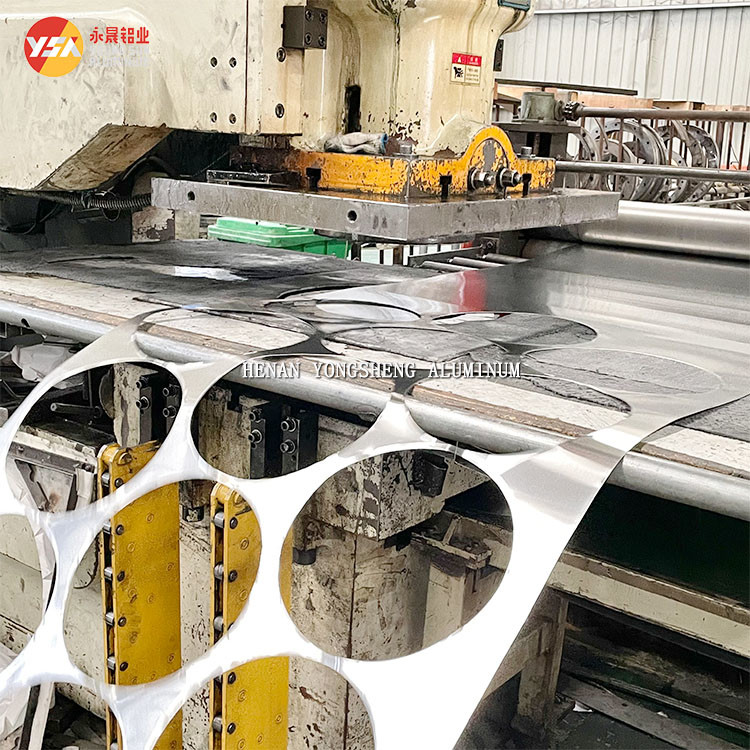

Laser-Guided CNC Blanking: Achieves ±0.05mm dimensional accuracy.
Burr-Free Edges: Post-blanking ultrasonic cleaning removes micro-imperfections.
