5754 5083 5052 Aluminum Chequered Sheet 3003 3105 Aluminum Tread Plates
| Herkunftsort | Zhengzhou Henan China |
|---|---|
| Markenname | Henan Yongsheng |
| Zertifizierung | SGS,ISO,etc. |
| Modellnummer | 5754 5083 5052 3003 3105 Aluminiumplatten |
| Min Bestellmenge | 3 Tonnen |
| Verpackung Informationen | Holzpaket |
| Lieferzeit | 7-30 Arbeitstage |
| Zahlungsbedingungen | T/T, L/C, D/A, D/P, Western Union |
| Versorgungsmaterial-Fähigkeit | 5000 Tonnen pro Monat |
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Bei Bedenken bieten wir rund um die Uhr Online-Hilfe an.
xProduktdetails
| Material | Aluminium-Scheibenblatt | Legierung | 1000, 3000, 5000 Serie |
|---|---|---|---|
| Dicke | 0.2-300mm | Breite | 50-2000mm, 2400MM, 6000MM, je nach Bedarf |
| Oberfläche | Gewölbte/perforierte/prägeartige/Wasser-Kräuselung | Länge | 1-12 m |
| Toleranz | ±3 % | Zertifikat | ISO9001: 2015 |
| Hervorheben | 3105 Aluminum Chequered Sheet,3003 Aluminum Chequered Sheet,5052 Aluminum Chequered Sheet |
||
Produkt-Beschreibung
Product Description:
Our 5754, 5083, 5052, 3003, and 3105 Aluminum Chequered Sheets (Tread Plates) are engineered for exceptional strength, corrosion resistance, and slip-resistant performance. Featuring a diamond or lentil pattern embossing, these sheets combine functionality with an aesthetically appealing finish, making them ideal for flooring, marine structures, transportation.
| Product name | Alloy | Temper | Thickness | Width |
| Anodized aluminum sheet |
1060,1070,1100, 3003,3004,3005,3105 5052,5083,5754,5005 6061,6063,7075,8011 |
H1X, H2X, H3X, O, HXXX | 0.2-10mm | 600-2000mm |
| Aluminum Tread plate | 1060,1070,1100, 3003,3004,3005,3105 5052,5083,5754,5005 6061,6063,7075,8011 |
H12,H14,H16, H18,H22,H24, H26,H32,H34, H36,H38,O |
0.2-300mm | 1600mm Max |
| Aluminum Checker plate | 1060,1070,1100, 3003,3004,3005,3105 5052,5083,5754,5005 6061,6063,7075,8011 |
H12,H14,H16, H18,H22,H24, H26,H32,H34, H36,H39,O |
1-7mm | 1600mm Max |
| Aluminum Diamond plate | 1060,1070,1100, 3003,3004,3005,3105 5052,5083,5754,5005 6061,6063,7075,8011 |
H12,H14,H16, H18,H22,H24, H26,H32,H34, H36,H40,O |
1-8mm | 1600mm Max |
| Embossed Aluminum plate | 1060,1070,1100, 3003,3004,3005,3105 5052,5083,5754,5005 6061,6063,7075,8011 |
H12,H14,H16, H18,H22,H24, H26,H32 |
0.2-200mm | 200-2200mm |
- Durable Anti-Slip Surface – High-traction diamond/lentil patterns prevent accidents in wet or oily environments (common in ship decks, industrial walkways, and ramps).
- Corrosion & Rust Resistant – Made from marine-grade 5083/5754 aluminum or medium-strength 5052/3003 alloys, these sheets withstand harsh environments (seawater, chemicals, UV exposure).
- Lightweight Yet Strong – Up to 30% lighter than steel but with impressive tensile strength (5083 alloy reaches 270–350 MPa).
- Easy to Fabricate – Can be cut, welded, bent, or drilled without cracking, perfect for custom installations.
- Aesthetic & Decorative Use – Available in brushed, mill-finish, or anodized options for stylish architectural façades, elevators, and signage.
- Temperature Resistant – Performs well in -50°C to 150°C (-58°F to 302°F).
Product Parameters:
| Product name | Aluminum Sheet |
| Grade | 1000 3000 5000 6000 Series |
| Temper | O-H112, T3-T8, etc |
| Application | Construction ,Decoration, Industry, Cookware |
| Width | 50-2000mm,2400MM,6000MM,as required |
| Surface Treatment | Corrugated/Perforated/Embossed/Water Ripple |
| Brand Name | Yongsheng |
| Model Number | 1100/10504/3003/5052/5083/5086/6061/6082, etc |
| Tolerance | ±3% |
| Delivery Time | 15-21 days |
| Thickness | 0.2-300mm as required |
| Length | 1-12m |
| Certification | ISO9001:2015 |
| Color | Customized Color |
| Technique | Cold Rolled Hot Rolled Galvanized |
| Payment Terms | L/C T/T(30% Deposit) |
| Packing | Standard Sea-worthy Packaging |

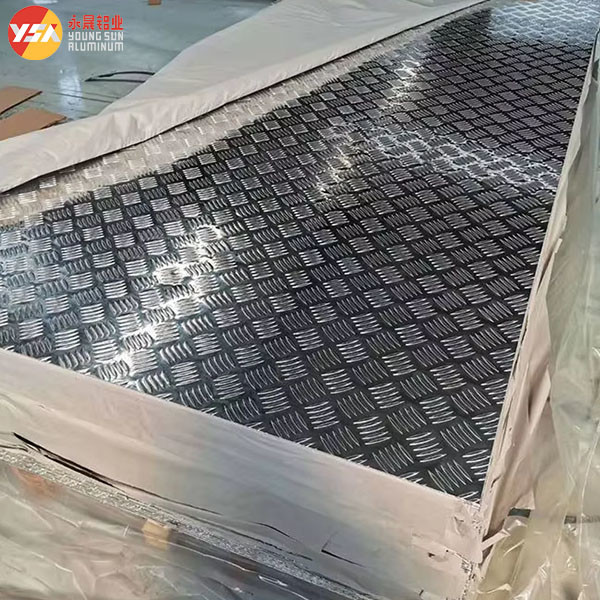

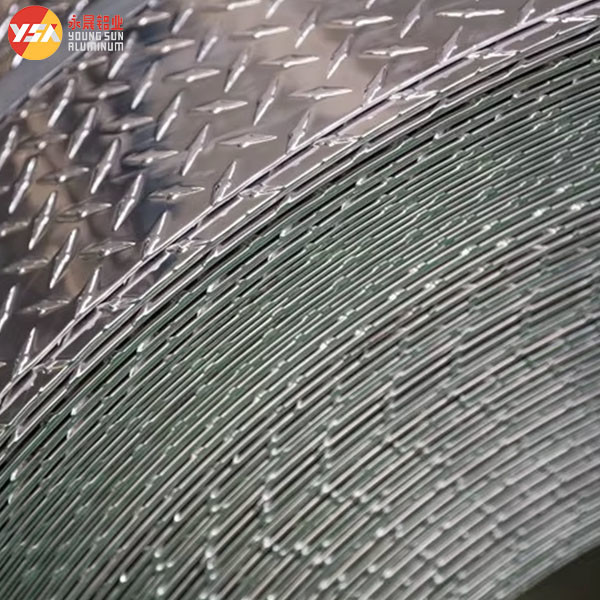

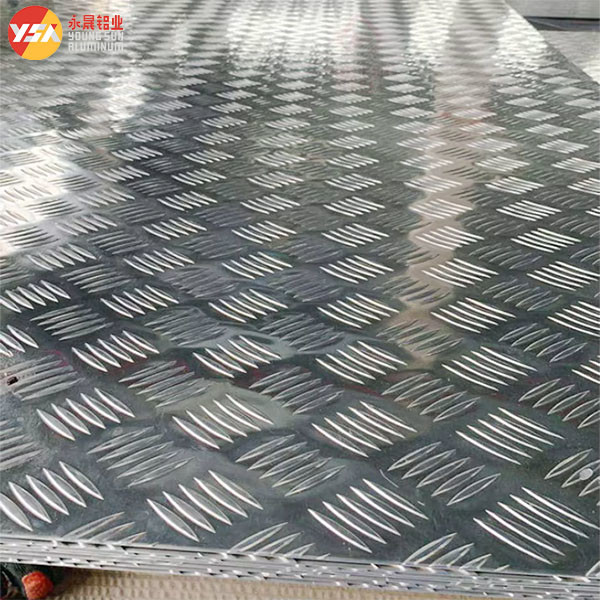

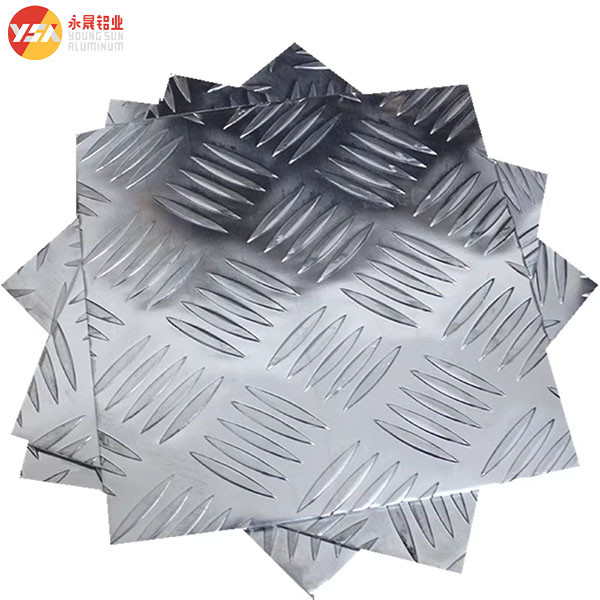

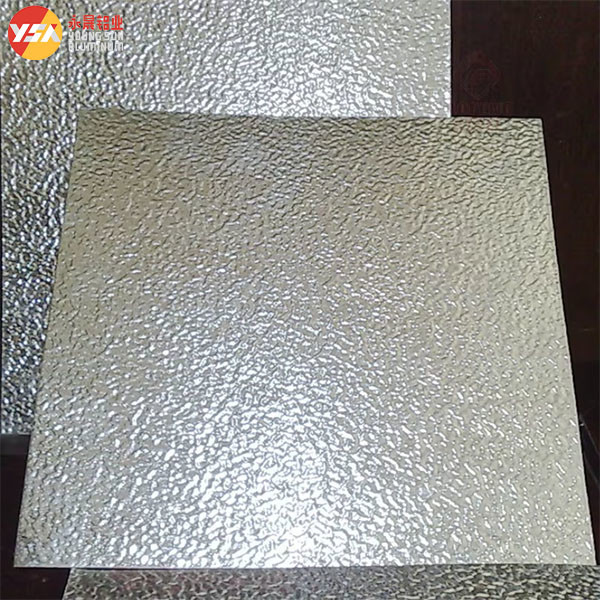

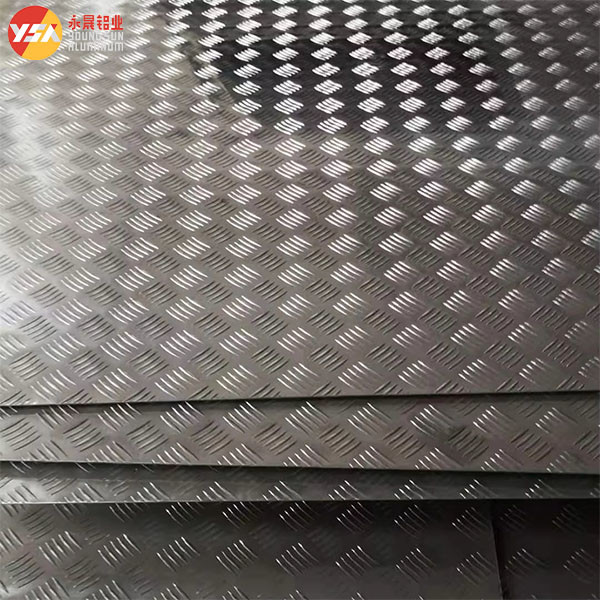

Product Show:
