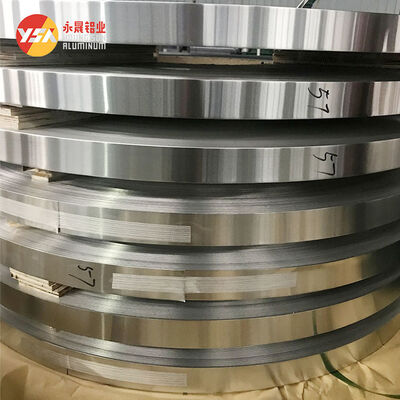

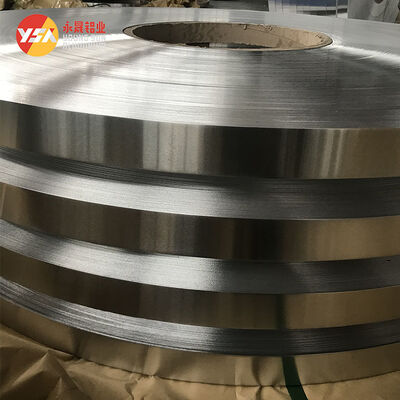

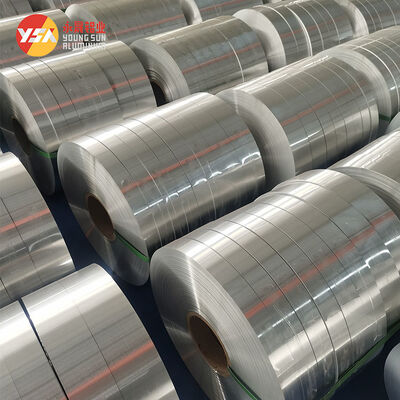

1060 3003 5052 Aluminum Strip Coil 0.1-6.5mm Battery Tab Kitchenware Color Coated Roofing Panel
| Place of Origin | Henan, China |
|---|---|
| Brand Name | YONGSHENG |
| Certification | ISO 9001:2015, SGS, RoHS, FDA |
| Model Number | YS-ASC-1060 |
| Minimum Order Quantity | 3 Tons |
| Price | USD 2,200-3,600 / Ton |
| Packaging Details | Eye to sky / eye to wall coil, PE protective film, seaworthy wooden pallet with steel strapping |
| Delivery Time | 7-25 days after order confirmation |
| Payment Terms | T/T,L/C,D/P,D/A |
| Supply Ability | 5000 Tons per Month |
Product Details
| Alloy Grade | 1050, 1060, 1070, 1100, 3003, 5052 | Temper | O, H14, H16, H18, H22, H24, H112 |
|---|---|---|---|
| Thickness | 0.1mm - 6.5mm | Width | 3mm - 2600mm (custom Slit) |
| Coil ID | 76mm / 150mm / 200mm / 405mm (customizable) | Surface Treatment | Mill Finish, PVDF Color Coating, Anodized, Mirror, Embossed |
| Electrical Conductivity | 59% IACS Or Above | Thermal Conductivity | 237 W/(m.K) |
| Tensile Strength | 60-350 MPa | Standard | ASTM-B209, EN573-1, GB/T3880.1-2006 |
| Food Contact | FDA Compliant Non-toxic Surface | Application | Battery Tab, Kitchenware, Roofing, Channel Letter, Gutter, Transformer |
| Narrow Width | 5mm, 10mm, 20mm, 40mm, 60mm, 100mm, 200mm | Width Tolerance | +0.2mm |
| Highlight | 1060 aluminum strip coil for battery tab,5052 aluminum strip roofing panel,color coated aluminum strip for kitchenware |
||
Product Description
Product Overview
This Aluminum Strip Coil is a high-performance material engineered for three fast-growing global markets: battery & new energy, kitchenware, and architectural color coating. Manufactured from premium alloys (1050, 1060, 1070, 1100, 3003, 5052) with thickness from 0.1mm to 6.5mm and slit widths from 3mm to 2600mm, it delivers consistent mechanical properties, precise thickness tolerance and a clean surface for high-volume automated production lines.
Key Selling Points
Battery & New Energy
For battery tabs, soft connectors and new energy applications, our 1060/1070 pure aluminum strip achieves electrical conductivity of 59% IACS or above and low resistivity. Precision slitting delivers completely burr-free edges with an oil-free surface, ensuring reliable ultrasonic welding and stable electrical contact in battery pack assembly. Excellent heat dissipation also supports power battery thermal management.
Food Grade Kitchenware
An FDA-compliant, non-toxic surface makes this strip safe for cookware, kitchenware and household appliances. High formability supports stamping, deep drawing, spinning and anodizing, while uniform mechanical properties deliver a high yield for round-the-clock kitchenware factories.
Architectural Color Coating
Available with PE and PVDF color coating, our aluminum strip coil resists fading, UV radiation, scratching and corrosion, making it ideal for roofing, wall cladding, gutters and aluminum composite panels. Color coated coils keep a clean, decorative appearance over years of outdoor service.

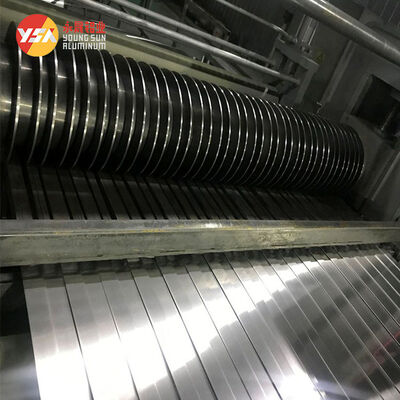

Precision Narrow Width Slitting
Precision slitting delivers narrow width strips in 5mm, 10mm, 20mm, 40mm, 60mm, 100mm and 200mm with a stable width tolerance of +0.2mm and burr-free edges, ready for direct use on high-speed stamping and wrapping lines.
Specifications
| Alloy Grade | 1050, 1060, 1070, 1100, 3003, 5052 |
|---|---|
| Temper | O, H14, H16, H18, H22, H24, H112 |
| Thickness | 0.1mm - 6.5mm |
| Width | 3mm - 2600mm (custom slit), including narrow width 5mm, 10mm, 20mm, 40mm, 60mm, 100mm, 200mm |
| Width Tolerance | +0.2mm (narrow width strip) |
| Coil ID | 76mm / 150mm / 200mm / 405mm (customizable) |
| Surface Treatment | Mill Finish, PVDF / PE Color Coating, Anodized, Mirror, Embossed |
| Electrical Conductivity | 59% IACS or above |
| Thermal Conductivity | 237 W/(m.K) |
| Tensile Strength | 60-350 MPa |
| Standard | ASTM-B209, EN573-1, GB/T3880.1-2006 |
| MOQ | 3 Tons |
Applications
- Battery tabs, soft connectors and new energy power battery components
- Cookware, kitchenware and household appliance housings
- Roofing, wall cladding, gutters and ACP color coated panels
- Channel letter, LED sign trim and transformer / radiator parts
Customization
- Custom slit width from 3mm to 2600mm, custom thickness from 0.1mm to 6.5mm
- Narrow width strips in 5mm, 10mm, 20mm, 40mm, 60mm, 100mm and 200mm with width tolerance +0.2mm
- Custom alloy grade, temper, coil ID / OD and coil weight to match your line
- Custom PE / PVDF color coating in RAL colors, embossing patterns and protective film
- OEM / ODM service with customer brand and private label packaging
Support and Services
- Free samples for evaluation before bulk order
- Fast quotation within 24 hours and professional technical guidance
- Strict quality control with third-party inspection (SGS) available
- Stable supply with monthly capacity of 5000 tons and responsive after-sales support
Packing and Shipping

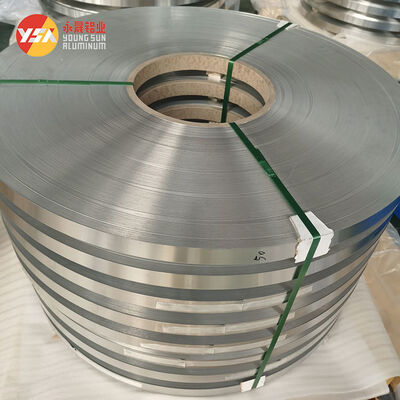

Eye to sky / eye to wall coil, PE protective film, seaworthy wooden pallet with steel strapping and anti-rust paper, loaded in 20GP / 40HQ containers. Delivery within 7-25 days after order confirmation; loading from Qingdao, Tianjin and Shanghai port.
