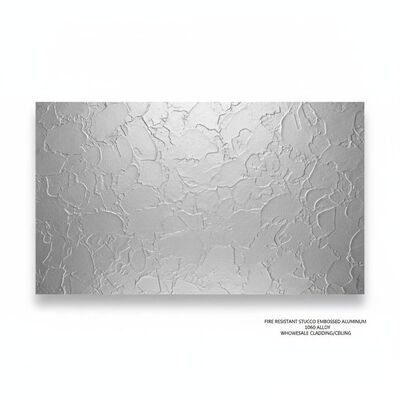

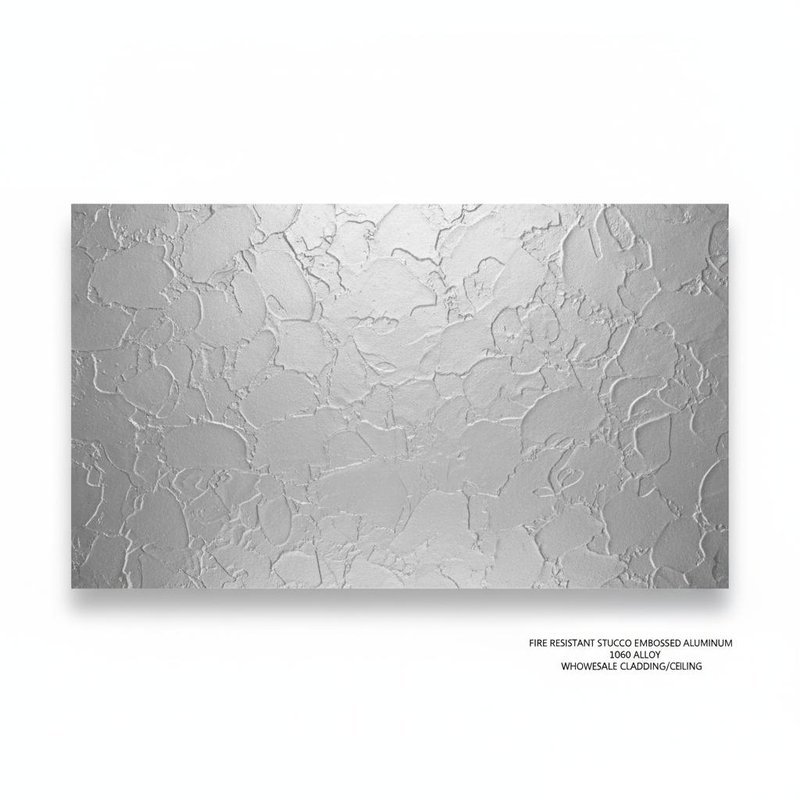

Fire Resistant Stucco Embossed Aluminum Sheet 1060 Factory Wholesale Cladding Ceiling
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BuildSafe Metal |
| Certification | CE, ISO 9001, SGS |
| Model Number | EMBOSS-STU-A2-FR |
Product Details
| Alloy | 1060 / 1100 / 1050 | Temper | O / H14 / H24 / H34 |
|---|---|---|---|
| Thickness | 0.3-3.0 Mm | Width | 1000-1500 Mm |
| Surface | Stucco Orange Peel / Pre-painted | Coating | PVDF / PE / SMP |
| Fire Rating | Class A (A2-s1,d0) / ASTM E136 Pass | Pattern Depth | 0.15-0.35 Mm |
| Edge Treatment | Mill Edge / Slit Edge | ||
| Highlight | fire resistant embossed aluminum,class A cladding sheet,factory wholesale aluminium plate |
||
Product Description
Class A Fire-Rated Stucco Embossed Aluminum Sheet — Built Safe, Priced Right
Premium 1060/1100/1050 pure aluminum alloy with Class A non-combustible fire rating. Unlike organic cladding or foam panels, this embossed metal will not fuel fires or release toxic smoke — the trusted choice for projects requiring strict fire safety compliance.
Core Selling Points
🔥 Class A Fire Performance
- EU EN 13501-1: A2-s1,d0 (fully non combustible)
- ASTM E136 Pass: Zero ignitability under high temperature
- Mandatory for hospitals, schools, tunnels, airports, high-rise towers, and public transit
💰 Factory Direct Pricing
- Over 20 years of vertical integration in Henan production base
- Typically 15–30% below trading company offers
- No middleman margins — competitive rates at any volume tier
✨ Full Specification Matrix
| Parameter | Specification |
|---|---|
| Alloy | 1050 / 1060 / 1100 / 3003 / 5005 / 5052 / 5754 / 6061 |
| Pattern | Stucco, Diamond, 5-Bar, Cobblestone, Hammer Tone, Wood Grain |
| Thickness | 0.2 – 6.0 mm |
| Width | 1000 / 1219 / 1220 / 1500 / 1524 mm |
| Temper | O / H14 / H24 / H34 |
| Coating | PE / SMP / HDP / PVDF / FEVE — RAL/Pantone matched |
| Edge Treatment | Mill / Slit / Trimmed / Rounded / Punched |
🏗️ Application Scenarios
🏢 Architectural Construction
- Exterior Cladding & Facades: High-rise towers, hotels, malls — non-combustible facade materials meeting national fire codes
- Ceiling Panels: Airports, subway stations, convention centers — moisture-resistant Class A ceiling panels
- Interior Partitions & Bulkheads: Hospitals, labs, clean rooms — easy-to-sanitize non-combustible surfaces
- Flooring & Tread Plates: Walkways, loading docks, stair treads — anti-slip stucco pattern + rust resistance
- Column Covers & Trim: Public building columns and corner beads — fire-safe compliance on exit routes
❄️ Refrigeration & Cold Storage
- Walk-in Cooler Liners: Food plants and warehouses — condensation-resistant 3003 alloy with added rigidity
- Freezer Cabinets & Display Cases: Conceals frost patterns, resists impact, meets food-safety standards
- Refrigerator & Freezer Liners: Bright reflective interior, deep-draw formable
🌬️ HVAC & Industrial Insulation
- Duct Jacketing & Thermal Wrap: Superior insulation grip, coil form for spiral wrapping up to 48″ diameter
- Pipe Insulation Cladding: Chilled water, steam lines in data centers and refineries — outdoor-rated durability
- Vapor Barrier Sheathing: Reflects radiant heat, reduces U-values by up to 25 %
🚛 Transportation & Automotive
- Trailer Flooring & Body Panels: Lightweight high-strength flooring; 5-bar/diamond patterns slip-resistance COF > 0.6 wet
- Transit Interiors: Buses, metro, rail vehicles per FMVSS 302 / EN 45545 fire standards
- Marine Decking & Bulwarks: Saltwater corrosion resistance, slip prevention, 15+ year maintenance life
⚡ Electrical & Energy
- Lighting Reflector Housings: Mirror-polished dual-finish coils for directional lumens
- Solar Mounting Structures: Soil-corrosion resistant rails with grounding continuity
- Transformer Enclosures: 18 % greater convective heat-transfer area vs flat sheet
🏭 Industrial Equipment
- Machine Guards & Shields: Perforated panels with operator visibility and debris protection
- Work Surfaces & Tables: Scratch-resistant finishes for precision tool areas
- Chemical Process Equipment: Acidic-atmosphere resistant liners facilitating visual inspection
🎨 Customization
- Design submission (CAD drawing, photo, or sample)
- Feasibility review within 3 working days
- Prototype rollers (7–10 days)
- Sample approval
- Mass production delivery
MOQ applies for custom patterns.
🛠️ Support & Services
- Pre-Sale: Material consultation, specification review, cost optimization analysis, free samples shipped within 5 days
- Certifications: MTC Type 3.1, EU A2-s1,d0, ASTM E136, NFPA 285, ISO 9001:2015, RoHS/REACH
- After-Sales: Real-time AIS tracking, warranty (10-year PVDF color stability, 5-year PE/HDP), dispute resolution via SGS/BV lab verification
📦 Packing & Shipping
Packaging Layers
| Layer | Purpose |
|---|---|
| Inner wrap | Waterproof kraft paper + plastic film (humidity barrier) |
| Foam edge protectors | Prevent inter-sheet abrasion |
| Steel straps | Bundle integrity during lifting |
| ISPM-15 plywood crate | Sea-container stacking support (up to 3 tiers) |
Loading Capacity
| Product | Thickness | 20′ GP | 40′ HQ |
|---|---|---|---|
| Sheets 4*8 ft | 0.5 mm | ~10 tons | ~18 tons |
| Sheets 4*8 ft | 1.0 mm | ~8 tons | ~12 tons |
| Sheets 4*8 ft | 2.0 mm | ~6 tons | ~8 tons |
| Coils | Any | ~18 tons | ~25 tons |
Shipping Methods
- Ocean FCL: Qingdao/Tianjin/Lianyungang ports — US West 14–18 d, US East 28–35 d, Europe 25–30 d, SEA 5–10 d
- LCL: Weekly consolidation for 1–5 ton trial orders (3–5 d + transit)
- Air Freight: ≤ 2 tons emergency shipments via DHL/FedEx, 3–7 days
- Domestic Truck: Mainland China direct delivery with soft-sling lifting
📩 Request a free sample and get a quote within 2 hours — direct factory pricing guaranteed.
