1000 3000 series outdoor architectural color aluminum coils, color lasts for ten years, lightweight and environmentally friendly
| Place of Origin | Chian |
|---|---|
| Brand Name | Yongsheng |
| Certification | Yongsheng |
| Model Number | 1000 3000 Color Aluminum |
| Minimum Order Quantity | 1 Ton |
| Packaging Details | Standard Seaworthy Wooden Pallet Packing |
| Delivery Time | 7-25 days after order confirmation |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 5000 tons/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Alloy | 1050, 1060, 1100, 3003, 3004, 3105, Etc. | Temper | O-H112 |
|---|---|---|---|
| Thickness | 0.2-3mm | Width | 30mm-1600mm, Can Be Divided Into Strips/slices |
| Tolerance | ±1% | Coating | PE Or PVDF |
| Coating Thickness | PE≥18 μm, PVDF≥25 μm | Color | RAL, PANTONE Full Color Card Customization, High Gloss / Matte / Metallic Silver / Wood Grain Stone Grain Optional |
| Highlight | outdoor architectural aluminum coils,color coated aluminum coil lightweight,aluminum coils ten year warranty |
||
Product Description

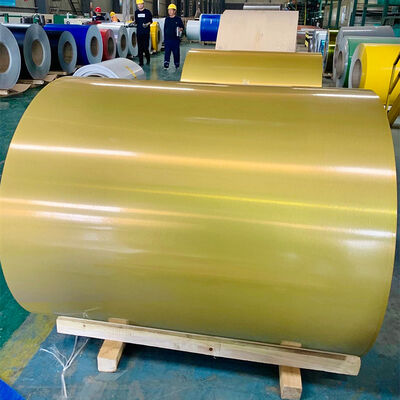

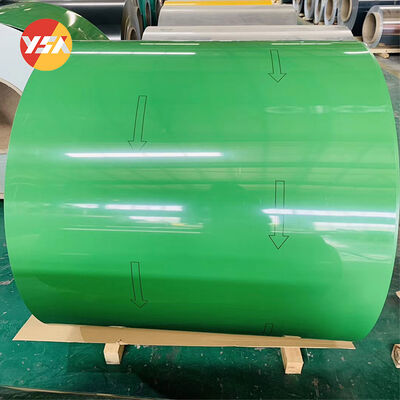

1000 & 3000 Series Outdoor Architectural Color Aluminum Coils
Premium architectural aluminum coils featuring durable color coatings that maintain their appearance for ten years. These lightweight, environmentally friendly coils are engineered for superior performance in demanding outdoor applications.
Product Specifications
| Attribute | Value |
|---|---|
| Alloy | 1050, 1060, 1100, 3003, 3004, 3105, etc. |
| Temper | O-H112 |
| Thickness | 0.2-3mm |
| Width | 30mm-1600mm, can be divided into strips/slices |
| Tolerance | ±1% |
| Coating | PE or PVDF |
| Coating Thickness | PE≥18 μm, PVDF≥25 μm |
| Color | RAL, PANTONE full color card customization, high gloss / matte / metallic silver / wood grain stone grain optional |
Coating Advantages
PE Coatings
- Based on high-molecular-weight linear polyester resins with uniformly dispersed pigments
- Flexible and elastic film withstands 0T bending without cracking
- Moderate crosslink density ensures strong adhesion to aluminum substrates
- Allows secondary processing like stamping, rolling, and shallow drawing without edge powdering
- High surface tension enables direct UV printing, screen printing, or lamination
- Produces fine patterns with excellent color fastness
- Ideal for applications requiring frequent exterior changes like signage and appliance panels
PVDF Coatings
- Composed of over 70% polyvinylidene fluoride resin
- High fluorine-carbon bond energy, stable molecular chains, and wide UV absorption band
- Color difference (ΔE) after ten years of outdoor exposure is ≤1.5
- Extremely low surface energy resists dust adhesion
- Self-cleans with rainwater, reducing maintenance needs
- Suitable for high latitudes and areas with large temperature swings
- Can be layered with clear varnish to enhance metal particle effects
- Meets quality and longevity requirements for high-end curtain walls, airports, and high-speed rail stations
Alloy Series Characteristics
1000 Series
- Contains ≥99% aluminum with coarse grains and excellent ductility
- Elongation up to 30%, suitable for deep drawing, spinning, and laser welding
- High electrical and thermal conductivity ideal for electromagnetic shielding or heat dissipation substrates
- Low impurity content ensures uniform color after anodizing
- Density of 2.71 g/cm³ makes it 65% lighter than steel
3000 Series
- Aluminum-manganese alloys with yield strength increase of 50-70 MPa
- Superior dent resistance through solid solution and dispersion strengthening
- Excellent weldability and deep drawability
- Processable into corrugated panels, gusset panels, and cassette honeycomb panels
- Widely used in roofing, interiors, and cold chain vehicles
- Better balance between strength-to-weight ratio and corrosion resistance than 1000 series
- Suitable for mid- to high-end projects requiring long-term load bearing or exposure
Product Images
