0.012mm Clear Transparent PET Polyester For Flexible Duct Film
| Place of Origin | Henan Province , China |
|---|---|
| Brand Name | Yongsheng |
| Certification | ISO, RoHS, etc |
| Model Number | 1050,1060,3003,5052,6061 |
| Minimum Order Quantity | 1ton |
| Price | 2900-3100 sud/ton |
| Packaging Details | Standard Seaworthy Wooden Pallet Packing |
| Delivery Time | 7-15work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 tons/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Transparent | Structure | PET |
|---|---|---|---|
| Thickness | 12/15/16 Mic, Etc | Width | 5-1600mm |
| ID | 52/76mm | Coil Diameter | 250-650mm |
| Refractoriness | 200-450°C | Apparent Density | 10-40kg/m³ |
| Highlight | Clear Transparent PET Polyester Film,0.012mm PET Polyester Film,Flexible Duct Film PET Polyester Film |
||
Product Description
0.012mm Clear Transparent PET Polyester Flexible Duct Film
Product Overview
0.012mm clear PET (polyethylene terephthalate) polyester film is engineered for flexible duct applications. This specialized film enhances tensile strength to prevent breakage while providing an effective moisture barrier.
Key Features
- Lightweight construction reduces shipping and handling costs
- High flexibility adapts to various shapes and sizes for complex duct systems
- Effective moisture barrier protects against condensation and humidity
- High temperature resistance suitable for both hot and cold air applications
- Exceptional durability with resistance to tearing, puncturing, and environmental stress
Technical Specifications
| Structure | Thickness (mic) | Specific Gravity (gr/m²) | Specific Area (m²/kg) |
|---|---|---|---|
| PET | 12 | 16.5 | 60 |
| PET | 15 | 20.6 | 48 |
| PET | 20 | 27.7 | 36 |
| PET | 25 | 34.7 | 28 |
| PET | 30 | 41.2 | 24 |
| PET | 35 | 48.2 | 20 |
| PET | 40 | 55.3 | 18 |
| PET | 50 | 68.8 | 14 |
| PET | 60 | 82.3 | 12 |
| PET | 70 | 94.5 | 10 |
| PET | 80 | 110 | 9 |
| PET | 90 | 124 | 8 |
| PET | 100 | 138 | 7 |
Standard Inner Diameter: 52mm, 76mm (paper tube, iron tube or plastic tube)
Width Range: Minimum 5mm; Maximum 1600mm
Coil Diameter: 250mm to 650mm

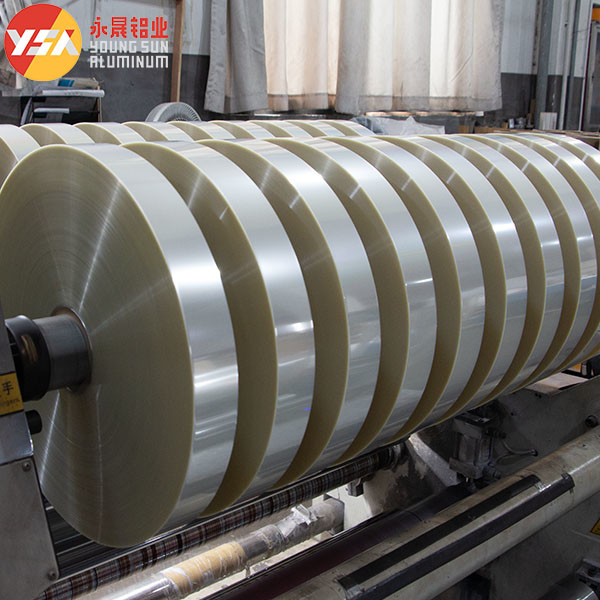

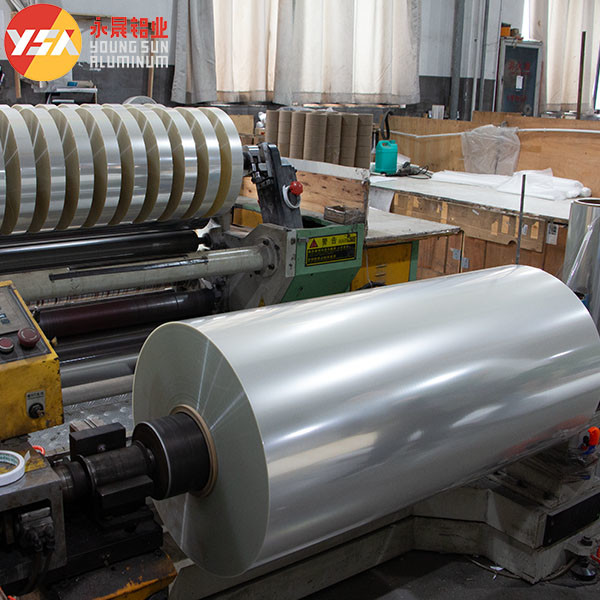

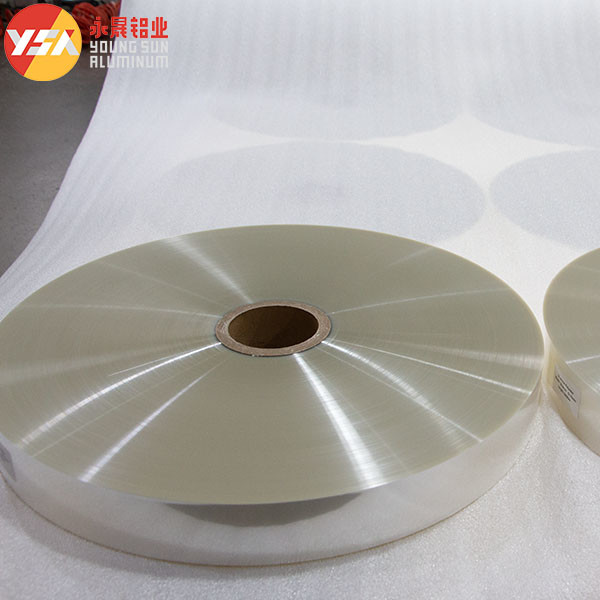

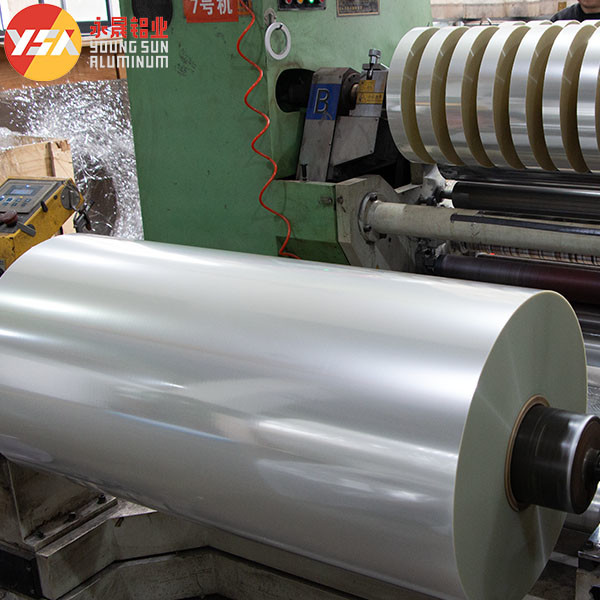

Product Display
