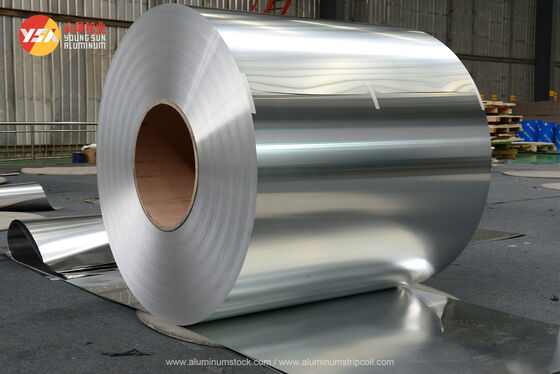

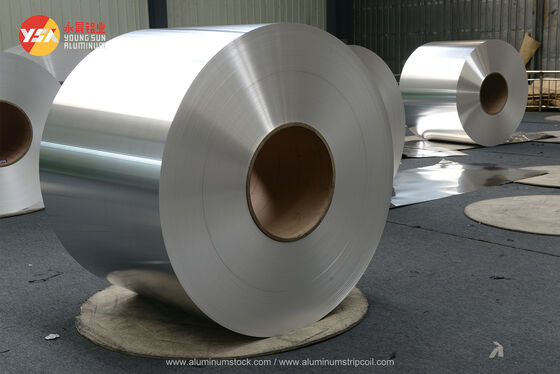

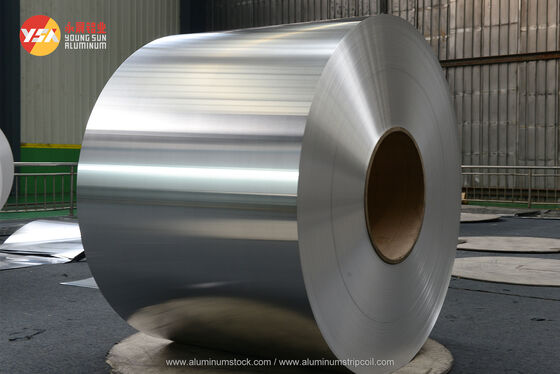

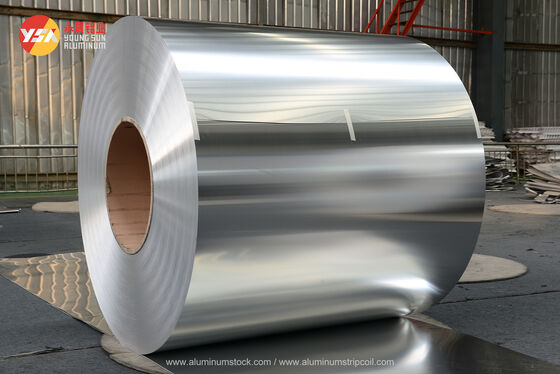

Roll Forming Aluminum Coil 3003 5052 Flame Retardant High Gloss Custom ID 508mm Seaworthy Export Packing

Product Description

Yongsheng roll forming aluminum coil integrates flatness controlled rolling performance with flame retardant high gloss coating, custom inner diameter and seaworthy export packing. It feeds seamlessly into gutter machines, roll forming lines and cladding profiling equipment, delivering stable output without wrinkling, camber or edge wave while meeting fire safety and decorative finish requirements.

Technical Parameters

Roll Forming Performance

• Flatness controlled within 2mm per meter to prevent rippling
• Stable coil set eliminates crossbow and camber during uncoiling
• No wrinkling, no edge wave at high line speed
• Uniform gauge and temper H14-H24 for consistent bending
• Deburred clean edges protect roll forming tooling

Integrated Selling Points

• High Gloss: gloss level up to 95% verified by gloss meter, smooth leveling without orange peel
• Fire Retardant: A2 non combustible classification per EN 13501-1 with flame retardant PE / PVDF coating, SGS fire test reports available
• Custom Inner Diameter: 405 / 505 / 508 / 610mm with +/-3mm tolerance on heavy gauge steel cores, plastic ID plugs included
• Seaworthy Export Packing: anti-scratch PVC film, waterproof kraft paper with desiccant, steel pallet and fumigation free ISPM 15 wooden case, loading photos provided

Applications

This roll forming coil is engineered for high speed continuous profiling across residential, commercial and industrial projects:

• Seamless Rain Gutter Systems: K-style and half-round gutters, downspouts and fascia trim produced on seamless gutter machines with zero wrinkling
• Roll Formed Roofing Sheets: corrugated, trapezoidal and standing seam profiles for low slope and steep slope roofing
• Flashing and Trim Profiles: ridge caps, drip edges, valley flashing, coping and wall flashings with tight bend radii
• Building Cladding and Facades: fire rated curtain wall panels and decorative cladding strips with A2 flame retardant finish
• Rolling Shutters and Doors: interlocking slat profiles requiring consistent gauge and temper
• HVAC and Ventilation: ducting, spiral tube and insulation facing profiles
• Elevator and Interior Decoration: high gloss wall panels and ceiling strips
• Agricultural and Industrial Buildings: roof and wall sheeting for warehouses, workshops and farm structures

All profiles run smoothly at speeds up to 60 m/min on standard roll forming equipment without tooling adjustment.

Customization

• Alloy and Temper: 3003 / 3004 / 5052 with H14, H16, H18, H22, H24 tempers per application
• Dimension: thickness 0.3-1.5mm, width 505 / 610 / 1000 / 1250mm or custom slitting from 100mm
• Color and Gloss: RAL, Pantone or NCS matching with gloss level from 15% matte to 95% high gloss
• Coating System: PE, PVDF, HDP or flame retardant systems with 15-25 micron paint film
• Coil Format: inner diameter 405 / 505 / 508 / 610mm, coil weight up to 5 tons, with or without protective film
• Logo and Label: custom coil ID labels, brand marking and export carton printing
• Trial Order: one coil trial orders accepted for line testing before bulk purchase

Support and Services

• Pre-Sales Consultation: alloy selection, coating system and gauge recommendation based on your roll forming profiles and local climate
• Samples and Color Cards: physical samples, RAL color cards and embossed effect boards sent within 3 working days
• Technical Documentation: mill test certificates, COA, EN573 / ASTM B209 compliance and SGS fire test reports provided with every shipment
• Third Party Inspection: SGS, BV or TUV inspection accepted before shipment
• OEM / ODM Support: private label coils, custom packaging and export documents for distributors
• After-Sales Service: dedicated engineer support, fast response within 24 hours and fair claim handling

Packing and Shipping

• Inner Protection: anti-scratch PVC film on painted surface plus moisture proof paper with desiccant
• Outer Protection: heavy gauge steel pallets, edge protectors, steel straps and plastic ID plugs
• Export Cases: fumigation free ISPM 15 wooden cases for smooth customs clearance
• Loading Control: professional container loading plan, dunnage and lashing to prevent movement in transit
• Shipping Documents: packing list, commercial invoice, COA, mill certificate and container loading photos
• Trade Terms: FOB Tianjin / Qingdao, CIF or CFR to world ports with full shipment tracking
• Transit Safety: 15 years export experience with damage rate below 0.1% on ocean freight
