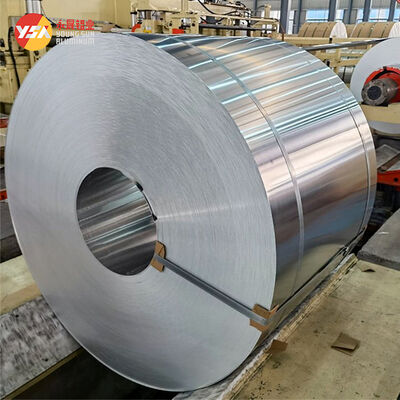

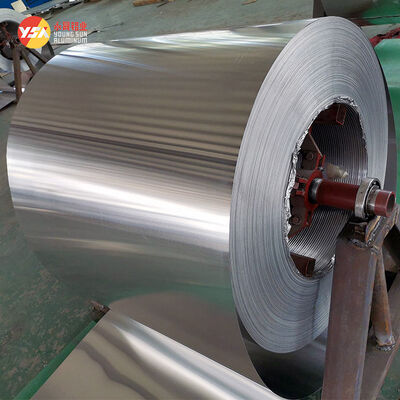

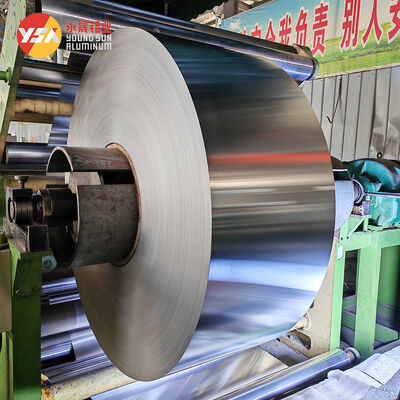

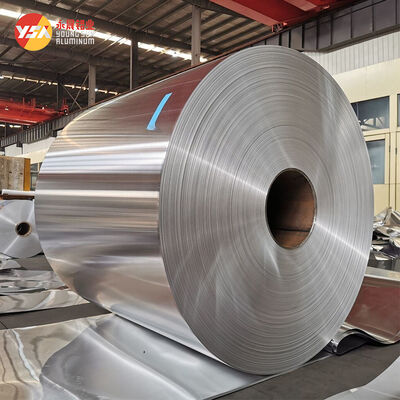

Stucco Orange Peel Wood Grain Embossed Aluminium Coil 3003 1060 1100 H24 0.2mm-3.0mm Thickness for Building Facade

Cold-rolled aluminium coil with the surface pattern rolled into the metal by an engraved roll, not applied as a coating. One alloy and temper base covers all three patterns, so a single order can mix stucco, orange peel and wood grain without changing material source or lead time.

• Stucco: fine non-directional grain that controls light reflection and conceals flatness deviation on wide panels.
• Orange peel: shallow pebble texture with low glare that hides fingerprints and scuffs and holds through bending.
• Wood grain: embossed plank reproduction, with or without a printed wood colour, on an aluminium core.

• Facade and envelope: wood grain 0.50-1.20 mm 3003/3105 H24 with PVDF for wall cladding, soffit, fascia and column covers; stucco 0.30-1.00 mm for wall lining, ridge capping and roofing underlay.
• HVAC and insulation: stucco 1050/1060/3003 O, H14 or H16, 0.20-0.60 mm for pre-insulated duct panels, duct wrap and pipe cladding, where the grain helps tape and vapour barrier grip.
• Cold storage: orange peel 0.40-0.80 mm with food-grade PE coating for cold room panels and hygienic partitions, easy to wipe down and resistant to trolley scuffing.
• Elevator and interior fit-out: orange peel 0.60-1.50 mm in 5052 or 3003 for car wall panels, door skins, shopfront fascia and column cladding, keeping a uniform finish through press-brake forming.
• Appliances and enclosures: orange peel or stucco 0.30-0.80 mm pre-coated 3003/3105 for refrigerator and washing machine cabinets, AC outdoor unit shells and control cabinets.
• Transport and marine: stucco 5052 H32 in 0.80-2.00 mm for truck and trailer side panels and marine superstructures; wood grain for caravan interiors; 1.00-3.00 mm 3003 for sign backing plate.
• Ceilings: wood grain 0.50-1.00 mm for linear strip, baffle and lay-in ceilings, run in long strips with minimal jointing.
• Tank and pipe jacketing: stucco 1060 H14 in 0.40-0.80 mm for storage tanks, process vessels and steam lines, with larger coil weights to cut lengthwise joints.
• Consumer and decorative: thin 0.20-0.50 mm stucco or wood grain for tool boxes, case shells, edge banding and premium packaging.

• Alloy and temper: 1050, 1060, 1100, 3003, 3105, 5052 from O to H26.
• Thickness 0.20-3.00 mm, width 100-1600 mm slit to order, inner diameter 405/505/508 mm, coil weight 2.0-5.0 tons.
• Embossing depth 0.03-0.08 mm; new patterns developed from your artwork or sample.
• RAL or Pantone PE and PVDF coating, matte to high gloss, printed wood effects combined with embossing.
• PE or PVC protective film with logo print, kraft interleave, coil or cut-to-length sheet supply, customer marks and pallet sizes.

• Material selection advice on alloy, temper and pattern depth against your forming operation and service environment.
• A4/A5 pattern and colour samples within 3 working days, freight collect.
• Mill Test Certificate, RoHS and REACH declarations, packing list, invoice, certificate of origin and Form E or A on request.
• Third-party inspection by SGS, BV, Intertek or your surveyor before loading.
• Weekly production photographs and a loading report with container and seal numbers.
• 12-month warranty on surface, coating and pattern defects, with technical response within 24 working hours.

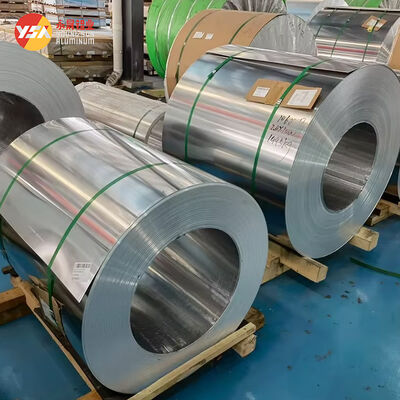

Coils are wrapped in moisture-barrier film with desiccant, fitted with edge protectors, steel strapped and loaded on ISPM 15 wooden pallets in eye-to-sky or eye-to-wall orientation. A 20GP carries about 18-20 tons and a 40HQ about 24-26 tons, and mixed pattern orders can be consolidated in one container.

Shipment from Qingdao, Shanghai or Tianjin by FCL or LCL, with production lead time of 7-25 days after order confirmation.
